Inspire Tri-Chorus Plus

Stunning Studio Chorus Sounds, No Rack Required

Those magically lush, elusive chorus tones you've heard on countless recordings are finally within reach. Inspire Tri-Chorus Plus captures eight stunning stereo chorus effects—ranging from subtle to incredibly lush—all built around variations of the tri-chorus algorithm.

• Features
  • True bypass
  • Inputs/outputs can be used mono (#1) or stereo (#1 and #2)
  • Analog dry signal for low noise and zero latency
  • Small, pedalboard-friendly footprint
  • Requires standard 9V pedal power supply (not included)
  • Designed and manufactured in California USA
• Effects

  Inspire is packed with eight incredible effects:

  • Tri — the classic rack chorus effect
  • Hex — two tri-choruses paralleled for an ultra-dense effect
  • Tri² (Tone) — two tri-choruses in series create a rich, lush effect
  • Tri² (Vibe) — tri-chorus and tri-vibrato in series makes for a complex sound
  • Hi/Lo (Vibe) — Low-frequency tri-chorus and high-frequency tri-vibrato, a more subtle effect that works well with overdrive
  • Hi/Lo (Detune) — low-frequency detune and high-frequency tri-chorus, even more subtle and sounds great with heavy distortion
  • ↓Tune — tri-chorus+detune for that ultimate rack chorus tone
  • Echo — tri-chorus+echo is a classic combo

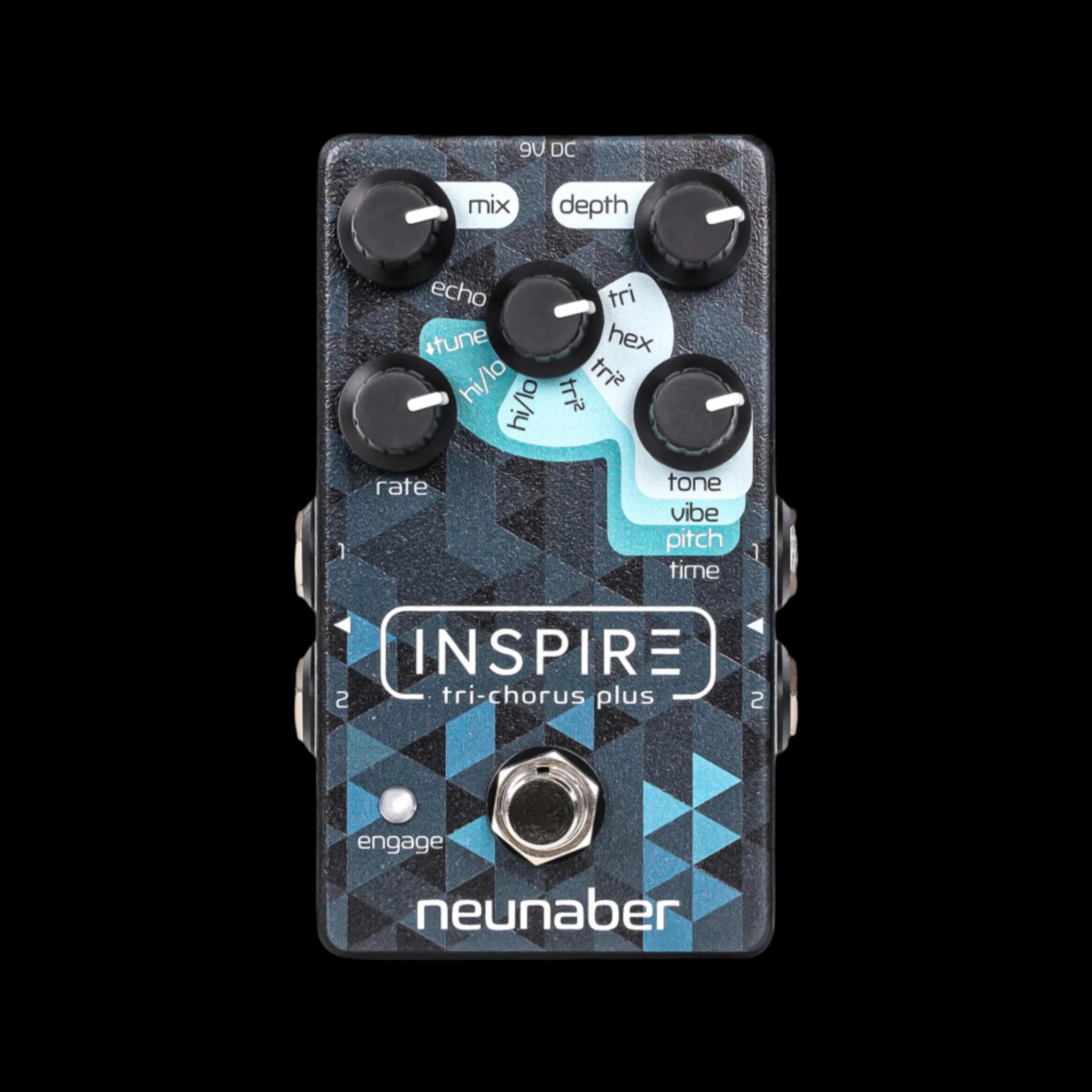

• Controls
  • Effect Select
  • Mix - effect mix from 100% dry to 100% effect
  • Depth - pitch depth (+Echo Repeats on Echo)
  • Rate - modulation rate from 0.5 to 6 cycles per second
  • Effect Adjust
  • Tone (Tri, Hex, Tri² Tone) - frequency response of effect only
  • Vibe (Tri² Vibe, Hi/Lo Vibe) - vibrato rate
  • Pitch (Hi/Lo Detune, Detune) - pitch offset, from 0 to -20 cents
  • Time (Echo) - echo time from 50 to 1000 ms
• Specifications
  Electrical

  Input level	instrument / consumer line level
  Input impedance	1 MΩ
  Gain	unity
  Frequency response	20 Hz—20 kHz
  Total harmonic distortion	0.002%
  Signal-to-noise ratio	103 dBA

  Power

  Input	9-12 V DC, 95 mA
  Connector	center-negative, 5.5 mm OD x 2.1 mm ID

  Physical

  Dimensions	2.9” x 4.6” x 2.0” / 73 mm x 117 mm x 51 mm
  Weight	8.84 oz / 251 g

  *See User Guide for complete specifications. Specifications subject to change without notice.

• Resources
  • User Guide
  • Pedal Comparison

Chorus Is Better In Stereo

Connect stereo outputs and be enwrapped in a studio-quality chorus. Want to change it up and plug into a single amp? Inspire will sum a stereo input to mono with only output 1 connected.

Low Power Consumption

Use a standard 9 V or 12 V pedal power supply. Or, connect Inspire to a 100 mA output on a brick supply.

8 Effects

8 incredible tri-chorus sounds, all in one pedal.

Analog Dry Signal

Your dry signal remains analog for low noise and zero latency.
