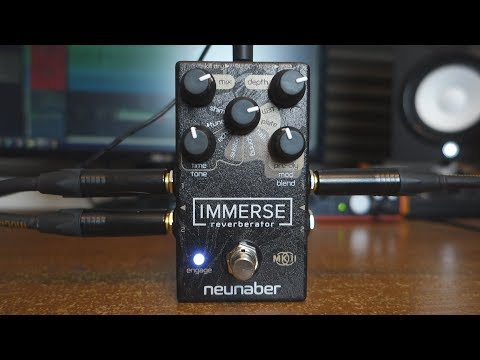

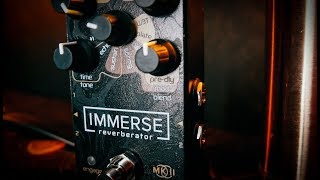

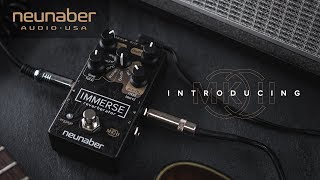

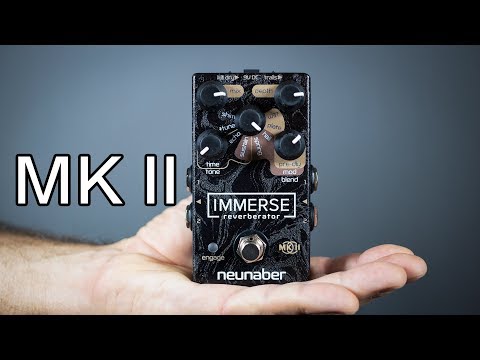

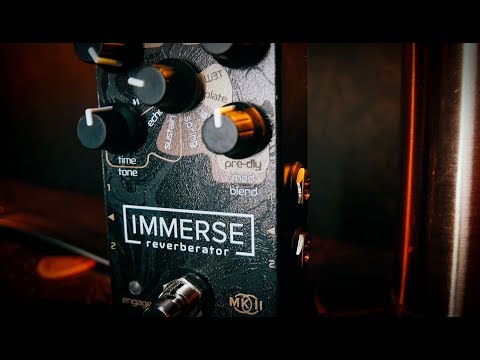

Immerse Reverberator Mk II

Eight Stellar Stereo Reverbs — Zero Learning Curve

The Immerse Mk II raises the bar with eight rich stereo reverbs in one easy to use pedal. No user manual required. Experience studio-quality tone that can be used with instruments of all stripes.

• Features
  • High-quality buffered bypass, perfect for placing at the end of the signal chain
  • Trails switch
  • Kill Dry switch for parallel effect loops

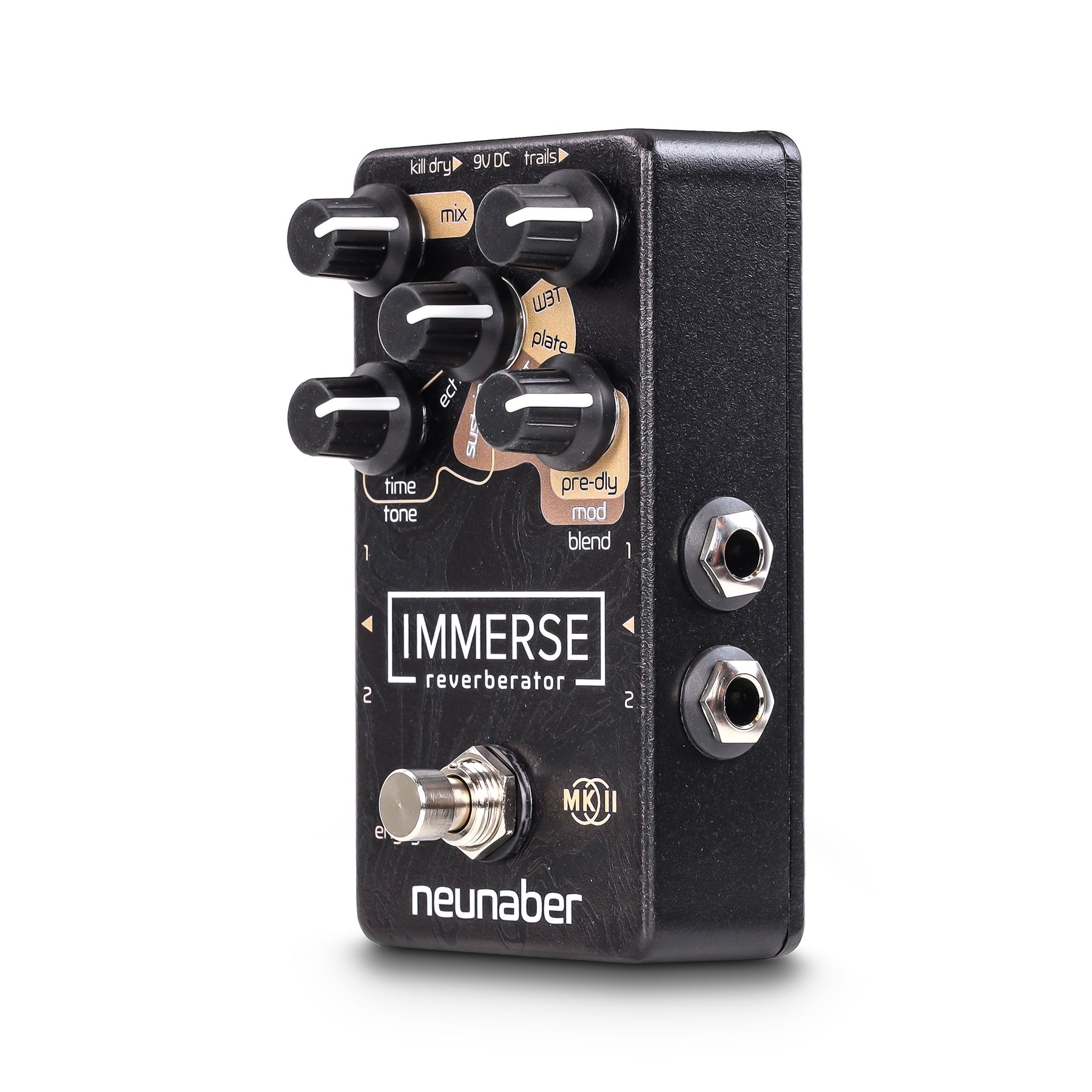

  • Inputs/outputs can be used mono (#1) or stereo (#1 and #2)
  • Analog dry signal for low noise and zero latency
  • Small, pedalboard-friendly footprint
  • Requires standard 9V pedal power supply (not included)
  • Designed and manufactured in California USA
• Effects

  The Immerse Mk II is packed with eight versatile reverb effects:

  • W3T (Wet v3) — Our flagship reverb algorithm is smoother and more three-dimensional sounding than ever before. With adjustable pre-delay, it enhances what you play without covering it.
  • Plate – Bright and diffuse like a studio plate reverb.
  • Hall – The lush, open sound of a concert hall with adjustable modulation depth for achieving deep modulated tones.
  • Spring – The distinctive twerp of a tube-driven spring reverb. With adjustable modulation speed, it can achieve a vibrato-spring sound.
  • Sustain  – A new algorithm built on the W3T reverb. This magical, versatile effect can be configured as a sustainer or infinite reverb.
  • Echo – Combining the W3T reverb with stereo echo.
  • Detune – Adds a detuned double of the dry signal with reverb. The blend control adjusts the amount of detune vs. detuned reverb.
  • Shimmer – Reminiscent of a synth pad that follows what your instrument plays, this effect combines the best qualities of our previous shimmers.

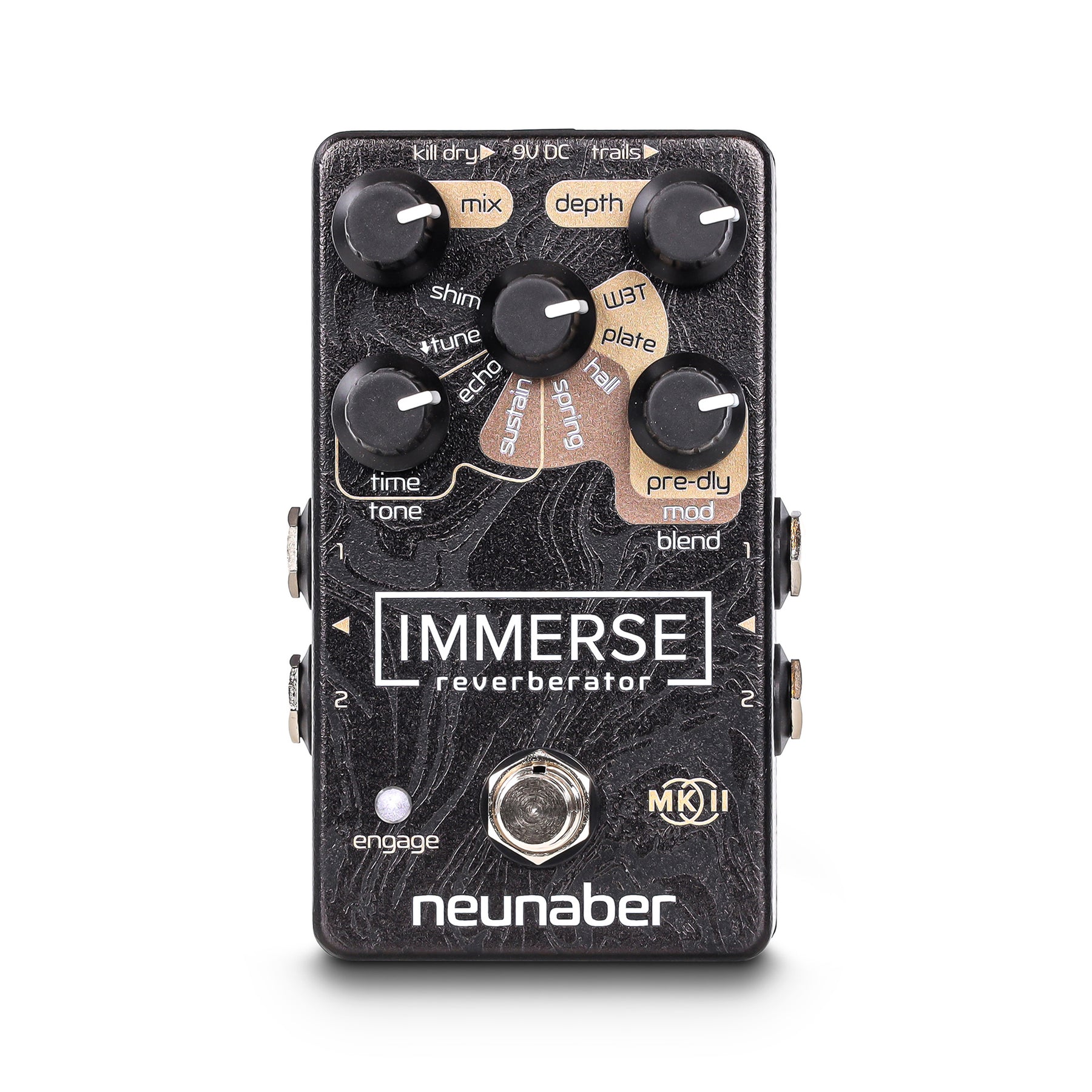

• Controls
  • Effect Select

  • Mix, from 100% dry to 100% wet
  • Reverb Depth (+Echo Repeats)
  • Effect Dependent Control 1
  • Tone (Wet, Plate, Hall, Spring, Shimmer, Detune)
  • Echo Time
  • Hold Time (Sustain)
  • Effect Dependent Control 2
  • Pre-Delay (Wet, Plate)
  • Modulation (Hall, Spring, Sustain)
  • Reverb-to-effect Blend (Echo, Detune, Shimmer)
• Specifications
  Electrical

  Input level	instrument / consumer line level
  Input impedance	1 MΩ
  Frequency response	20 Hz—30 kHz
  Total harmonic distortion	< 0.01%

  *See User Guide for complete specifications.

  Power

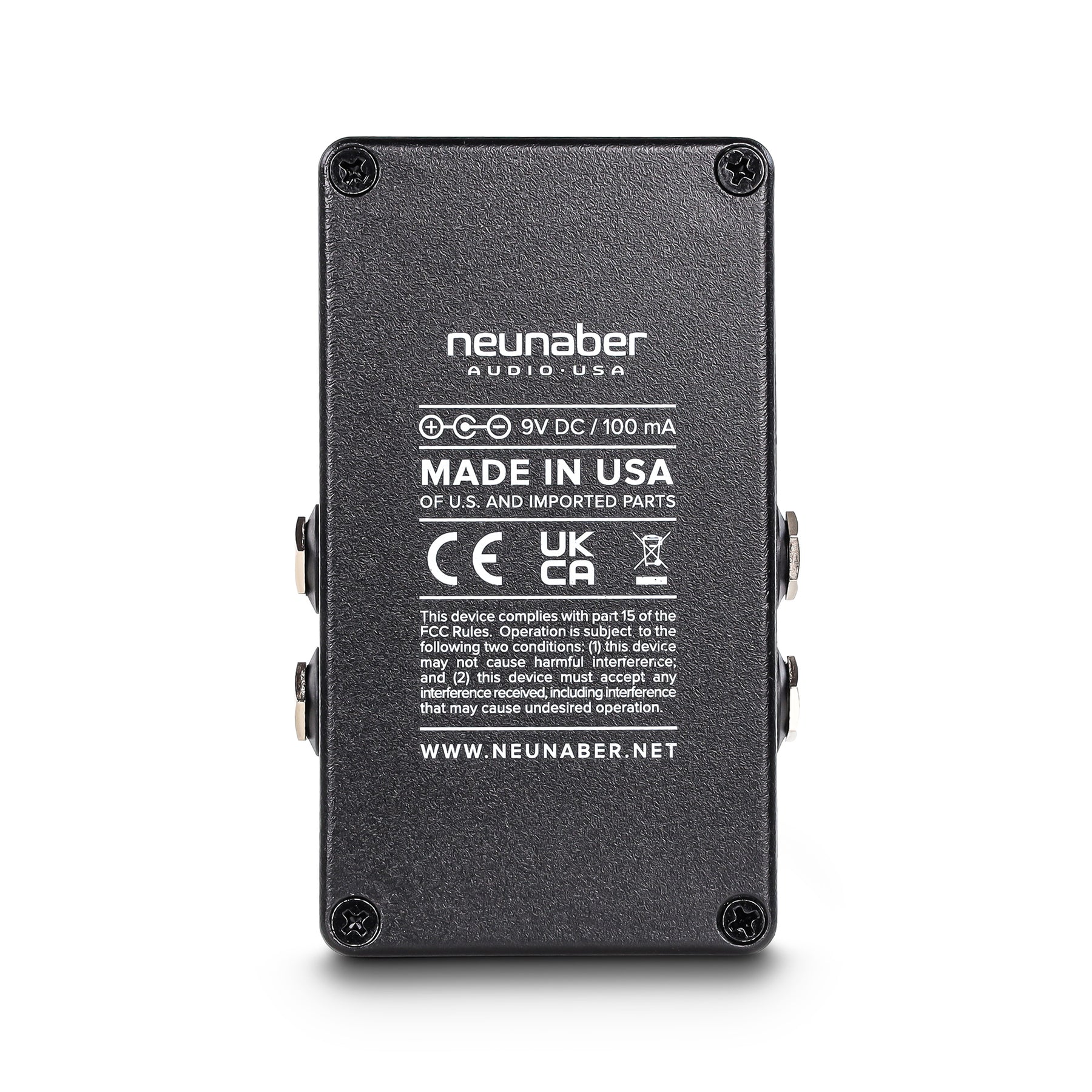

  Input	9-12 V DC, 100 mA

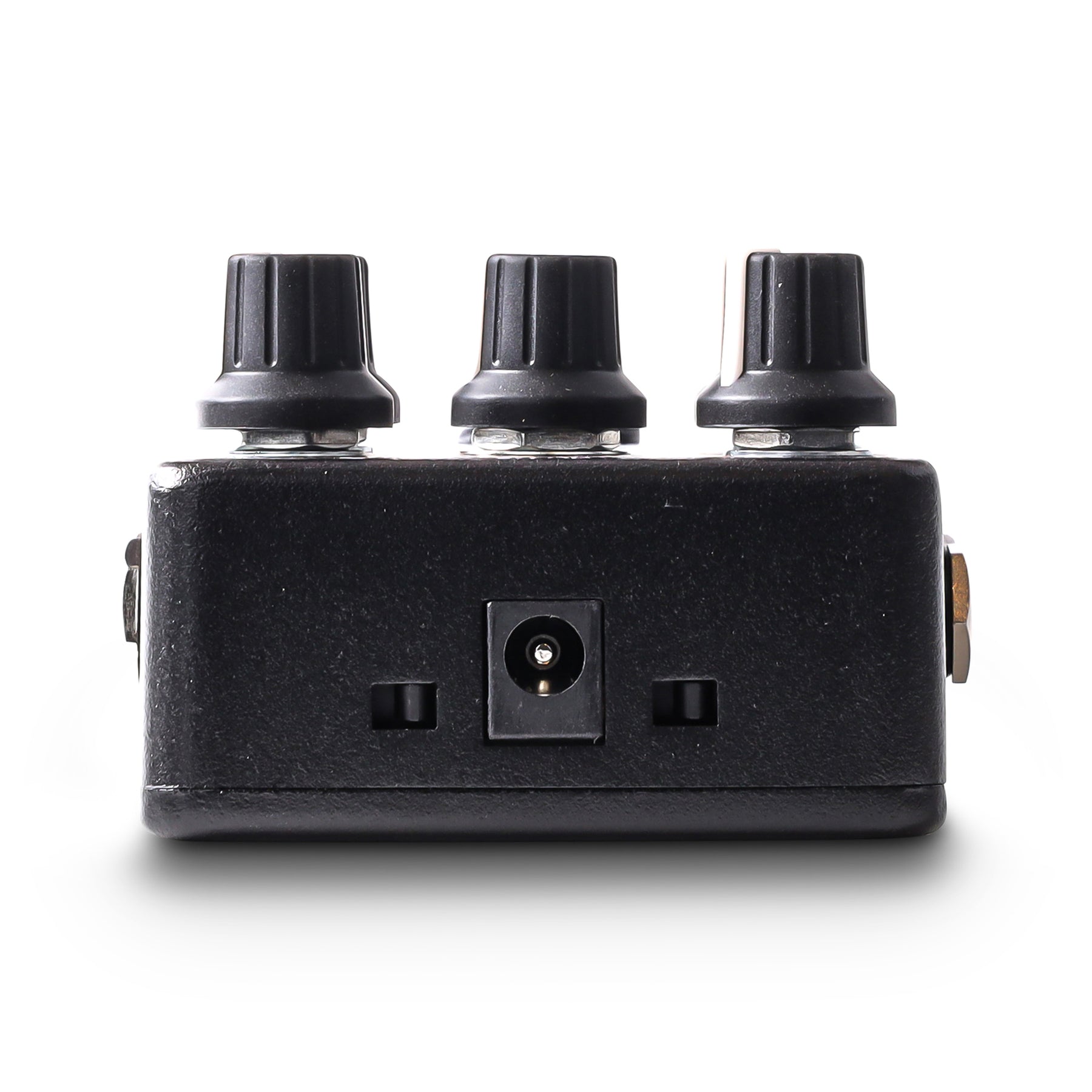

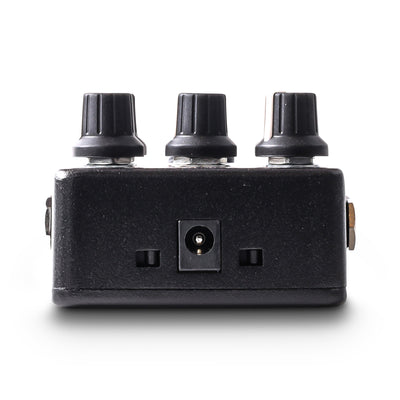

  Connector	center-negative, 5.5 mm OD x 2.1 mm ID



  Physical

  Dimensions	2.6” x 4.6” x 1.9” / 63 mm x 115 mm x 46 mm
  Weight	6.7 oz / 190 g

  *Specifications subject to change without notice.

• Resources
  • User Guide
  • Favorite Settings Sheet
  • Pedal Comparison

Reverb Is Better In Stereo

Connect stereo outputs for a huge, immersive sounding reverb. Want to change it up and plug into a single amp? Immerse will sum a stereo input to mono with only output 1 connected.

Low Power Consumption

Use a standard 9 V or 12 V pedal power supply. Or, connect Immerse to a 100 mA output on a brick supply.

Buffered Bypass

It's great to have a buffer at the end of your signal chain.

Analog Dry Signal

Your dry signal remains analog for low noise and zero latency.
